- Included Displays: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel Level.
- Also shown in digital message center: Odometer, Trip Odometer, Resettable Service Odometer, Clock, Hour Meter, 0-60 MPH Timer...
- Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control…
- Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.

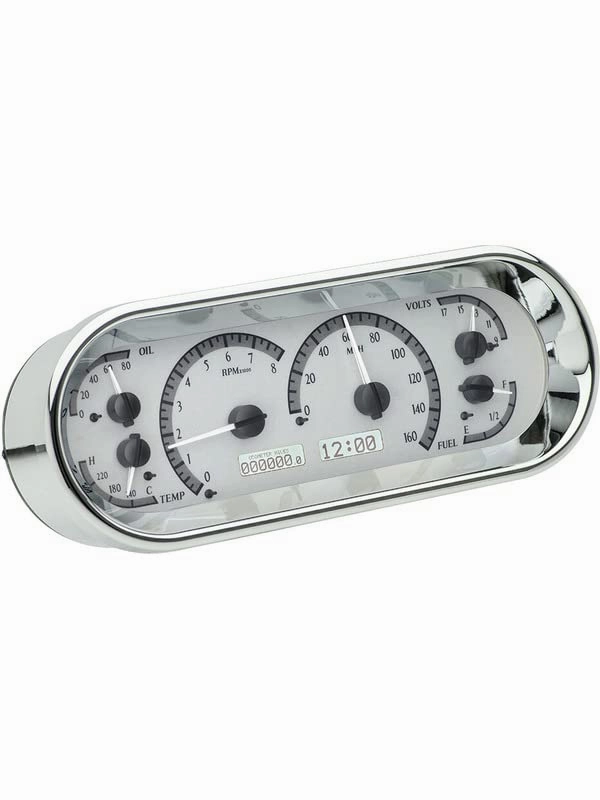

- VHX-1018-S-W (silver alloy style/white backlighting) - The new Universal VHX-1018 Rounded Rectangle gauge cluster measures 11.4" x 4.4"
Checking in at 11.4" wide, 4.4" tall and 2" deep, VHX-1018 offers great visibility and features in a compact package. The graceful instrument housing in flawless chrome plating perfectly complements the backlit VHX system making this a classy option that fits nearly any vehicle.
*Includes chrome bezel
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at Dakota Digital's facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Analog Gauges:
Speedometer - 0-160 MPH
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260ºF
Fuel Level - E, 1/4, 1/2, 3/4, F
Voltmeter - 9-17 VDC
Digital Message Centers:
Standard Displays:
-Odometer (One time user settable, Million Mile)
-Dual (A/B) Trip Meter (0- 9,999.9)
-Clock (12 hour)
Performance Meters:
-0-60 MPH Timer (0- 100 kmh)
-1/4 mile time
-1/4 mile end speed (trap speed)
-High speed recall
-High RPM recall
Built-In Indicators:
-Turn Signals (Left/ Right)
-High Beam
-Check Engine
-Parking Brake
-Cruise Control (On/ On & Engaged when vehicle is equipped)
-Gear Position (Optional GSS-3000 sensor required, sold separately)
-4 x 4 and Wait to Start (When vehicle is equipped)
Included Senders:
Water Temperature, Oil Pressure and Speed Sender (Replaces GM style speedometer cables with a 10ft harness)
- Is Discontinued By Manufacturer : No
- Package Dimensions : 20 x 18 x 10 inches; 7 Pounds
- Date First Available : August 11, 2016
- Manufacturer : Dakota Digital
- Country of Origin : USA
