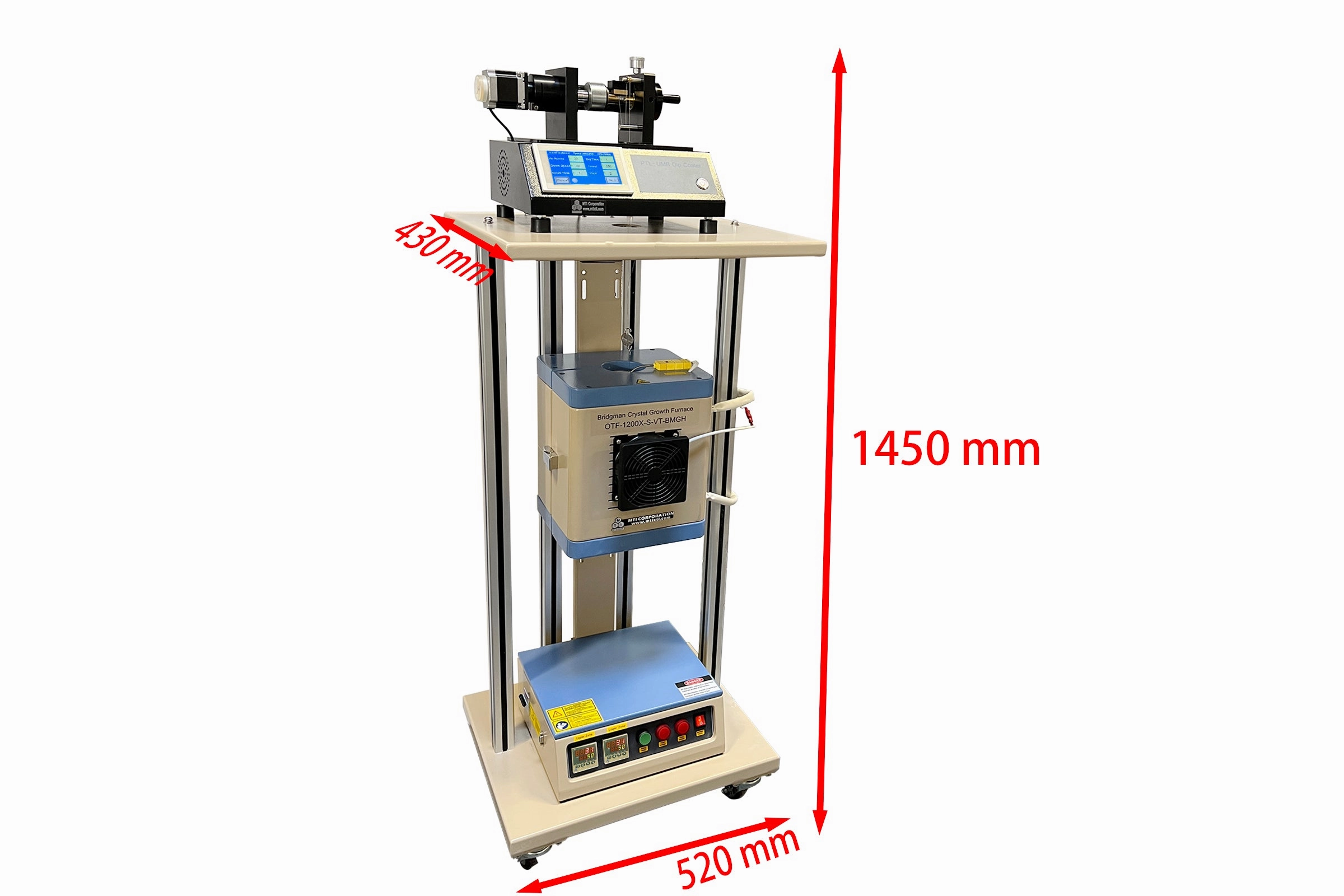

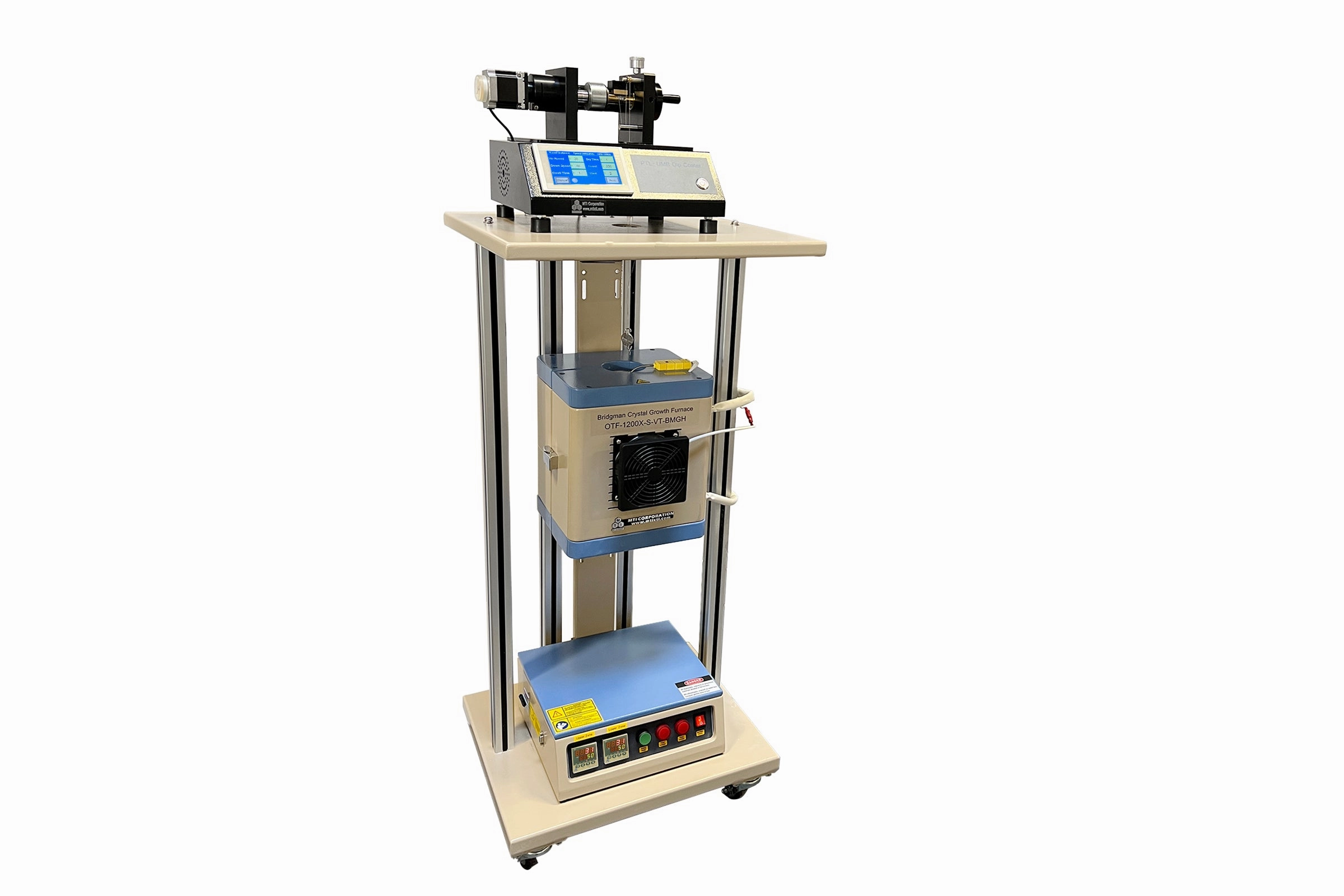

Vertical Two Zone Tube Furnace

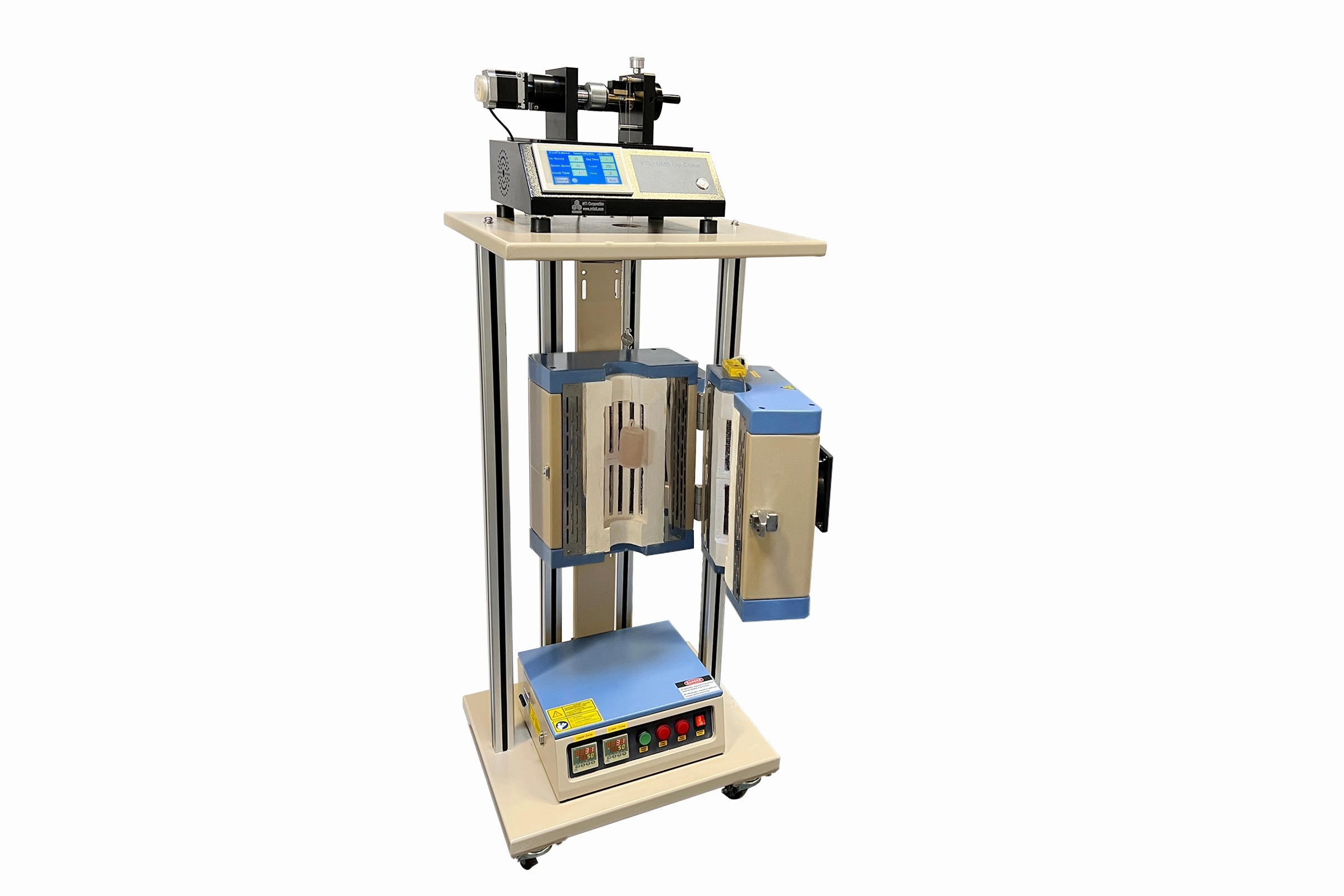

| - Compact two zones split vertical tube furnace
- Working Voltage: 110V AC or 220V selectable
- Max. Power Consumption: 1.5 KW
- Two Heating Zone: 100 mm L for each Zone, 200 mm L in total
- Max. heating temperature: 1200°C
- Continuous working temperature: 1100°C
- Two programmable digital temperature controllers which control two heating zone independently
- Max. Temperature gradient: 1ºC/Cm
- Finding a suitable thermal gradient is user responsibility
- Adjusting two heating zone's temperature can create different thermal gradient profile
- Adjusting furnace opening diameter also can change the thermal gradient
- Click Pic left to see detail specs of the dual-zone furnace
|
Hanging wire
| - One set of Ni-SS hanging wire is included (pic to the left). Max. working temperature is 800C.
- Optional hanging wire for higher working temperature is available upon request:
- Ni-Cr-Al wire (not included) Max. working temperature < 1100°C
- Platinium wire (not included) Max.working temperature > 1200°C and < 1600°C
- A thin hanging wire goes through the top flange. A positive inert gas can keep processing tube under controlled atmosphere
- For air-sensitive material, the sample shall be sealed in a small quartz tube with pre-vacuumed as Pic below right
- 800C pulling wire (Ni-SS) sealed quartz tube as the crucible
|
Motor and Controller
| - 6"L x 4"W Touch Screen
- Wire descending speed is programmable within 3 segments.
- Precise DC step motor controls traveling speed.
- Pulling speed range: 1-500 um/sec adjustable with the accuracy of /- 0.05%
- Total stoke length controlled by touch screen: 350mm
- Power: 50W, 110V - 240V C
- Optional: Lower speed range is available upon request at extra cost.
|
| Compliance | - CE Certified
- NRTL certification is available upon request at an extra cost
|
| Laptop, software & WiFi Control (Optional) | - Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial)
- Labview Based Temperature Control System (MTS01) enables the user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces
- A wireless remote control provides up to 300 meters operating range
-
|
| Warranty | - One-Year limited warranty with lifetime support
- Consumable parts such as processing tubes, O-rings, and heating elements are not covered by the warranty
|
| Application Notes | - In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture
|
