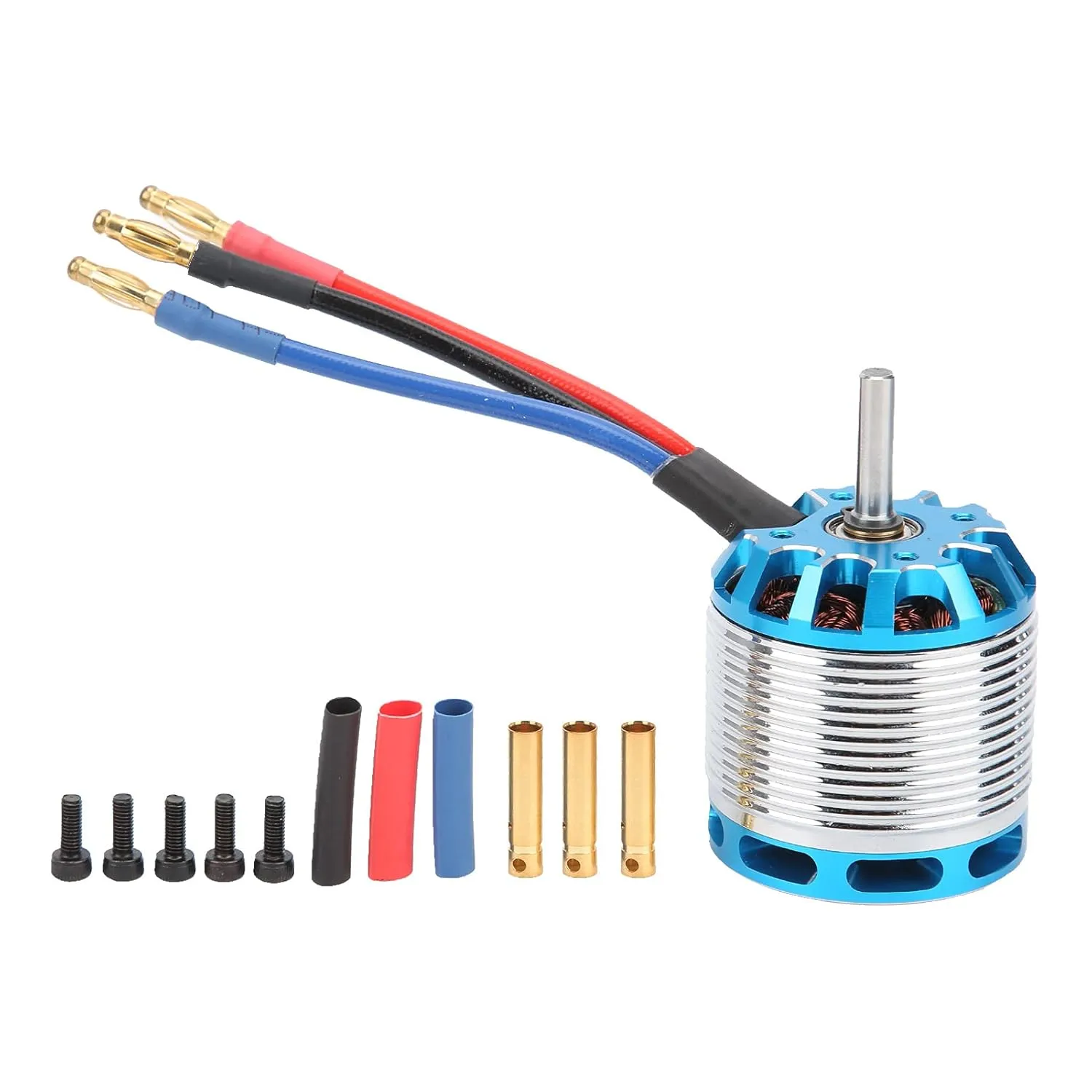

[IMPORTED BEARINGS] The H500 motor features original imported bearings and HRC 55 degree stainless steel shaft, enhancing durability and efficiency.
[HIGH TEMPERATURE WIRE] Equipped with 220 high temperature enameled wire and a fireproof carbon fiber shell for enhanced of copper wire.
[STRONG MAGNETIC FIELD] Utilizing high magnetic energy N45SH magnetic steel, the motor can withstand temperatures of up to 150 degrees with a powerful magnetic field.
[HIGH TORQUE AND EFFICIENCY] The H500 motor combines 0.2 steel plate for high torque and efficiency, with a 4.0 connector for increased safety and current capacity.
[HIGH-SPEED PERFORMANCE] With a maximum speed of 40,000 rpm, the high-speed H500 motor undergoes rigorous testing for bearings and shafts, ensuring reliability and performance.

Spec:
Item Type: H500 Helicopter Motor
Material: Steel Copper
Color: Blue
Product Size: Approx. 45 x 42mm / 1.8 x 1.7in
Shaft Diameter: Approx. 5mm / 0.2in
Shaft Length: Approx. 20mm / 0.8in
Plug: 4mm / 0.16in Banana Male
Weight: Approx. 246g / 8.7oz
KV Value: 1600kv
No-Load Current: 3.1A
Maximum Current: 85A
Maximum Power: 1900W


Package List：
1 x Motor
3 x Heat Shrinkable Tube
3 x Copper Tube
5 x Screw
1 x Manual

Note：

• Package Dimensions ‏ : ‎ 5.12 x 4.33 x 1.57 inches; 8.68 ounces
• Date First Available ‏ : ‎ April 4, 2025
• Manufacturer ‏ : ‎ EVTSCAN
• Country of Origin ‏ : ‎ China
